4.3inch Capacitive Touch LCD 800x480 Pixels Resolution IPS Panel 216 Colors Via the 24-bit RGB Interface
Product details
| Management number | 221443206 | Release Date | 2026/05/03 | List Price | $13.44 | Model Number | 221443206 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

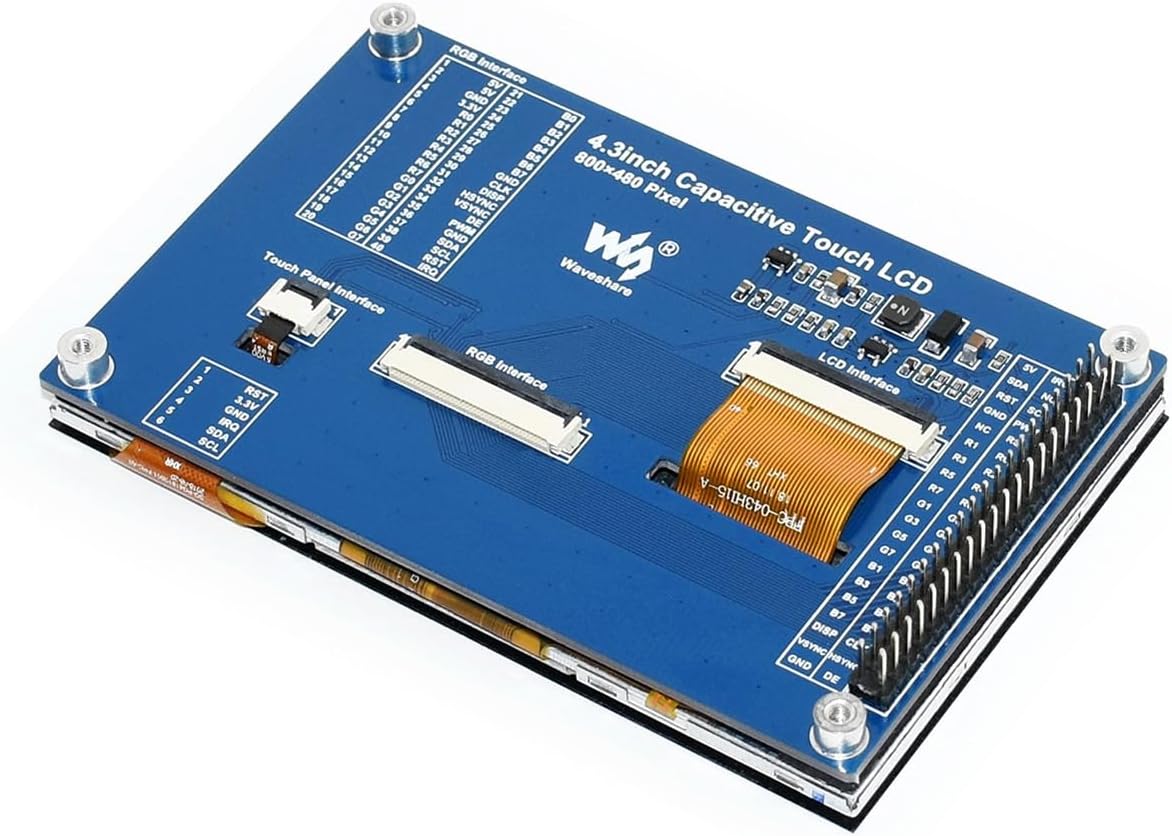

Overview This is a multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels. It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via I2C interface. Features 4.3inch capacitive touch display, 800x480 resolution Capacitive touch panel on the I2C bus, 5-points touch control, with touch interrupt 24-bit RGB display interface, 16,777,216 colors, fast refreshing Comes with development resources and manual (examples for STM32F4 / STM32F7) Key Parameters LCD Type:IPS LCD Interface:24-bit RGB Touch Screen Interface:I2C Display Colors:16,777,216 Touch Controller:GT911 Display Size (MM):95.04 (W) × 53.86 (H) Dot Pitch (MM):0.1188 (W) × 0.1122 (H) Backlight:LED Resolution:800 × 480 (Pixel) Power Supply Voltage:5V Logic Level:3.3V Package Content 4.3inch Capacitive Touch LCD x1 40-pin FFC (opposite side contact) x1 Screws pack (4pcs) x1

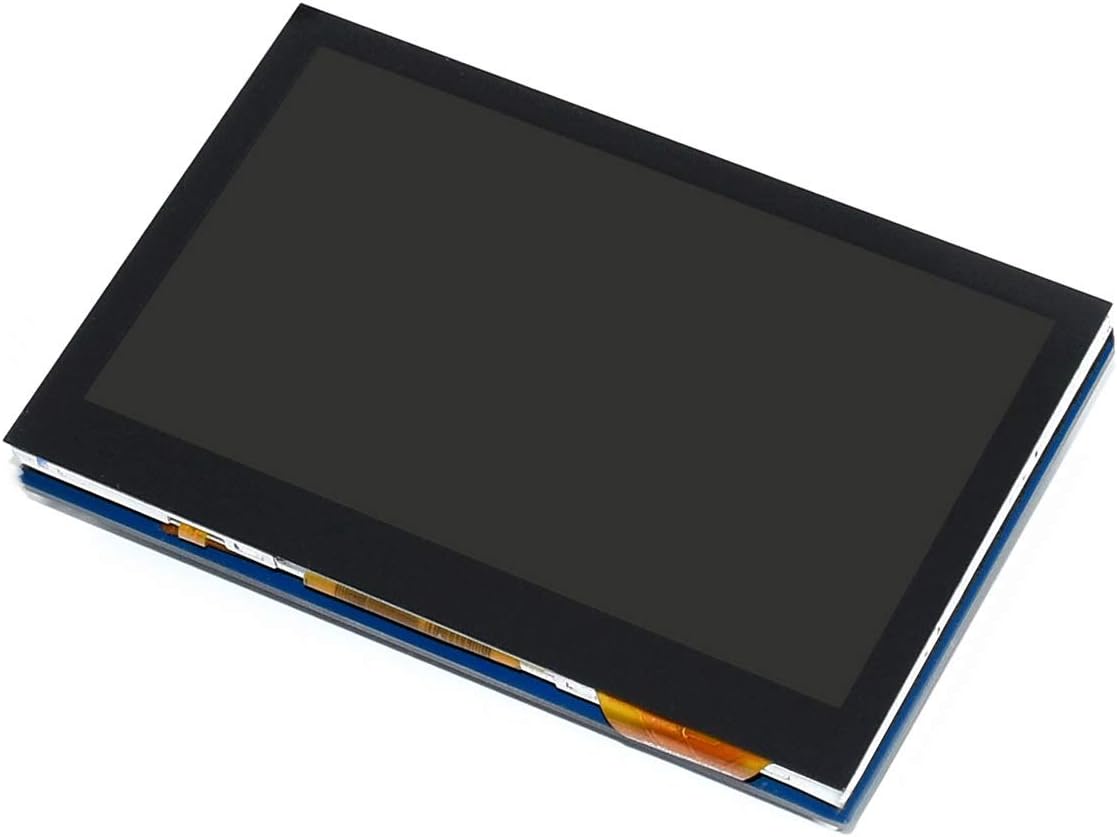

- This is a multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels
- Capacitive touch panel on the I2C bus, 5-points touch control, with touch interrupt
- 24-bit RGB display interface, 16,777,216 colors, fast refreshing

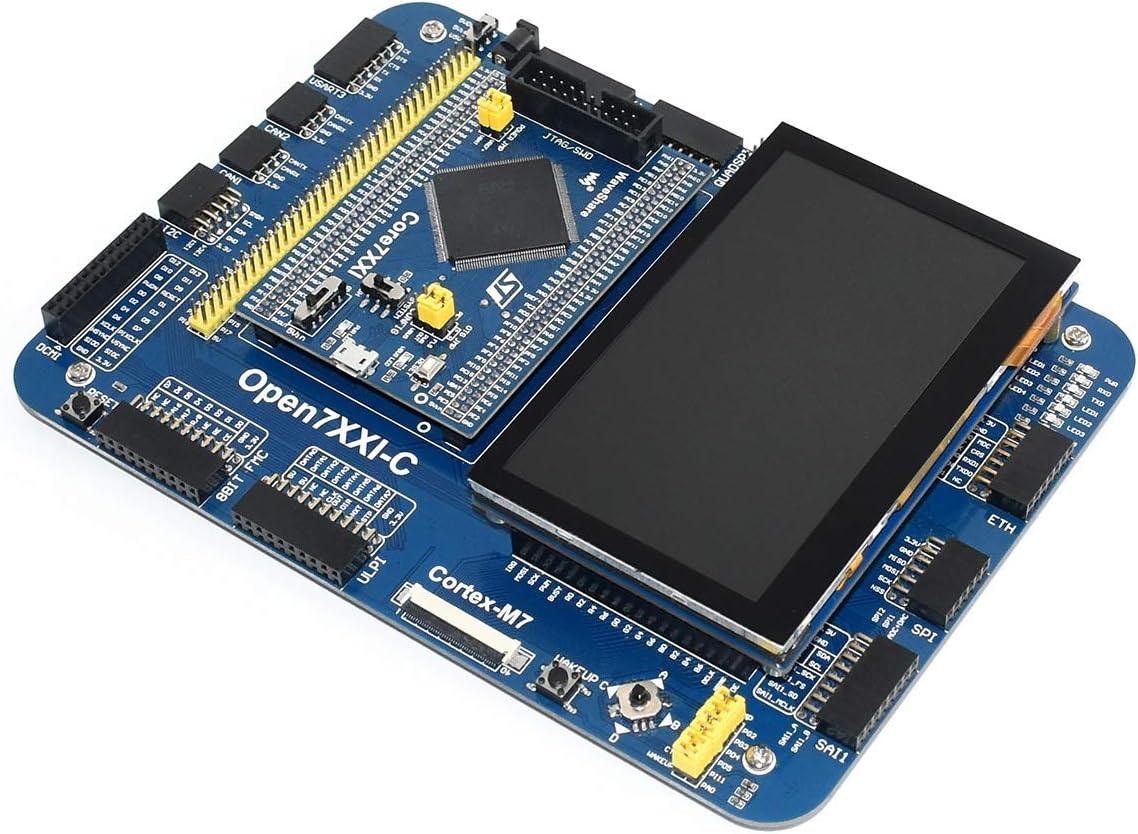

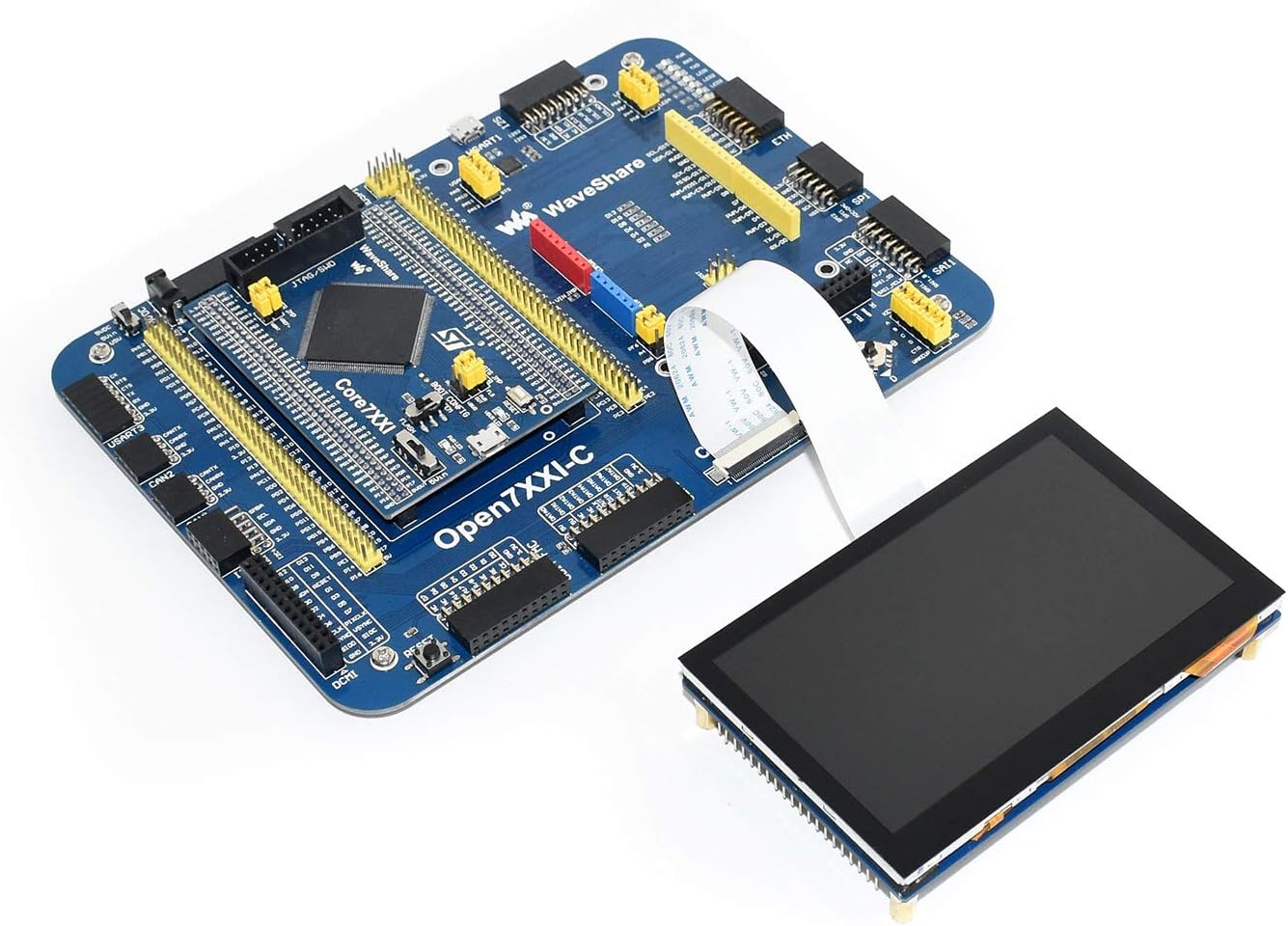

- Comes with development resources and manual (examples for STM32F4 / STM32F7
- It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via I2C interface
| Brand | TUOPUONE |
|---|---|
| Model Name | RS3060 |
| Screen Size | 43 Inches |
| Display Type | LCD |
| Manufacturer | TUOPUONE |
| Model Number | RS3060 |
| BuiltIn Media | 4.3inch Capacitive Touch LCD, 40-pin FFC (opposite side contact), Screws pack (4pcs) |
| Native Resolution | 800 x 480 |
| Compatible Devices | Desktop, Laptop, Single-board Computers |
| Connectivity Technology | USB |
| Specific Uses For Product | ['DIY Projects', 'Educational Kits', 'Single-Board Computer Displays'] |
